    Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall

    Ask Lasest Price
    Brand Name : HBGB
    Model Number : GB-002
    Certification : ISO 9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 pcs per day
    Delivery Time : 10-25days
    • Product Details
    • Company Profile

    Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall

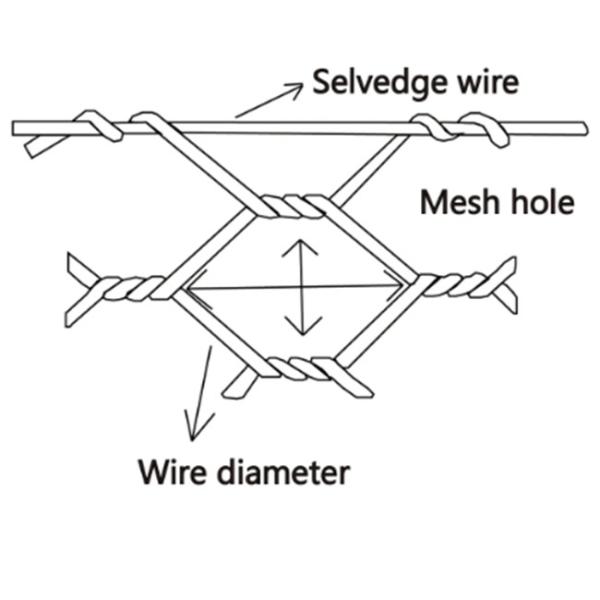

    Galfan Wire Woven Type Hexagonal Hole Shape Gabion Mesh Basket


    Gabion Mesh Basket Introduction:


    Gabion basket is also called gabion box, gabion wall, gabion cage, hexagonal gabion, gabion retaining wall and so on. It is a large cage made by hexagonal wire netting, it can be filled by stones, the wire material is high quality galvanized carbon steel, it is strong enough to protect road, river wall or forward operating bases.

    Gabion length could be adjusted by add diaphragms each meter.

    Gabion Mesh Basket Raw Material:


    Product Name
    Gabion
    Hole Type
    Hexagonal
    Production process
    Three twist / Five twist
    Material
    GI wire,PVC coated wire,galfan wire
    Wire Diameter
    2.0mm-4.0mm
    Hole Size
    60×80mm,80×100mm,100×120mm,120×150mm
    Gabion Size
    2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m
    4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.

    Gabion Mesh Basket Applications:


    1. Control and guide of water or flood

    2. Preventing of rock breaking 3. Keep off dust wall
    4. Water and soil protection
    5. Port project
    6. Roadway protection
    7. Bridge protection
    8. Strengthening structure of soil
    9. Protection engineering of seaside area

    Gabion Mesh Basket Specifications:


    Mesh Size

    Galvanized Gabion( Dia.mm)

    PVC Gabion (Inside Dia/Outside Dia.mm)

    Max Wide Cut

    60x80mm

    Φ2.0-2.8

    Φ2.0/3.0-2.8/3.8

    4300

    80x100mm

    Φ2.2-3.2

    Φ2.2/3.2-3.0/4.0

    4300

    80x120mm

    Φ2.2-3.2

    Φ2.2/3.2-3.0/4.0

    4300

    100x120mm

    Φ2.4-3.5

    Φ2.4/3.4-3.2/4.2

    4300

    100x150mm

    Φ2.4-3.5

    Φ2.4/3.4-3.2/4.2

    4300

    120x150mm

    Φ2.7-4.0

    Φ2.7/3.7-3.5/4.5

    4300


    Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall

    Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall


    Packing & loading pictures:


    Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall


    Application:


    Construction Hexagonal Gabion Wire Baskets OEM 3x1x0.5m Rock Basket Retaining Wall
